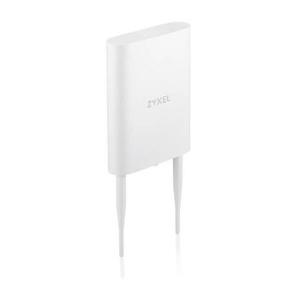

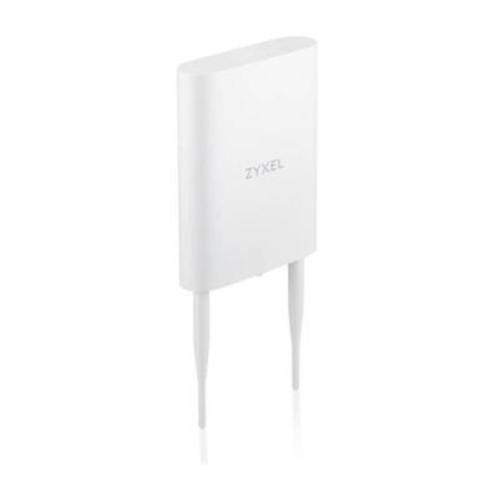

Access Point Wireless ZYXEL NWA55AXE-EU0102F NebulaFlex Dual Radio 2x2 802.11a/b/g/n/ac/ax 1775Mbps Outdoor IP55- Supp.Poe 16w

Product name
Description: 802.11ax (WiFi 6) Dual-Radio Outdoor PoE Access Point

Wireless
Standard: IEEE802.11 ax/ac/n/g/b/a
MIMO: MU-MIMO
Wireless speed:
- 2.4GHz: 575 Mbps
- 5GHz: 1200 Mbps
Frequency band:
2.4 GHz:
- USA (FCC): 2.412 to 2.462 GHz
- Europe (ETSI): 2.412 to 2.472 GHz
5 GHz:
- USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
- European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth: 20-, 40- and 80-MHz
Conducted typical transmit output power:
- US (2.4GHz/5GHz): 23/26 dBm
- EU (2.4GHz/5GHz): 20/25 dBm

RF Design
Antenna type: 2x2 External Antenna
Antenna gain:
- 2.4GHz: 4 dBi
- 5GHz: 5 dBi
Minimum Receive sensitivity: Min. Rx sensitivity up to -99 dBm

WLAN feature
Band Steering: Yes
WDS/Mesh*2: Yes
Fast roaming: Yes
DCS: Yes
Load balancing: No

Security
Encryption:
- WPA Personal
- WPA2 Personal
- WPA3 Personal
Authentication: No
Access management:
- MAC filtering
- Rogue AP detection

Networking
IPv6: Yes
VLANs: Yes
WMM: Yes
U-APSD: Yes

Management
Operating mode:
- Cloud managed
- Standalone
ZON Utility:
- Discovery of Zyxel switches, APs and gateways
- Centralized and batch configurations
- IP configuration
- IP renew
- Device factory reset
- Device reboot
- Device locating
- Web GUI access
- Firmware upgrade
- Password configuration
Zyxel Wireless Optimizer: WiFi AP planning
Web UI/CLI: Yes
SNMP: NO

Physical Specifications
Item:
- Dimensions (WxDxH)(mm/in.): 308 x 136.4 x 49.6 /12.13 x 5.37 x 1.95
- Weight (g/lb.): 580/1.28
Packing:
- Dimensions (WxDxH)(mm/in.): 221 x 188 x 59 / 8.70 x 7.40 x 2.32
- Weight (g/lb.): 887/1.96
Included accessories: PoE injector, Mounting screws
MTBF (hr): 1,091,186

Physical Interfaces
Ethernet port: 1x 10/100/1000M LAN
Power: PoE (802.3at): power draw 16 W

Environmental Specifications
Weather protection: IP55
Operating:
- Temperature: -20°C to 60°C/ -4°F to 140°F
- Humidity: 10% to 90% (non-condensing)
Storage:
- Temperature: -40°C to 70°C/-40°F to 158°F
- Humidity: 10% to 90% (non-condensing)

Certifications
Radio:
- FCC Part 15C
- FCC Part 15E
- ETSI EN 300 328
- EN 301 893
- LP0002
- EN 60601-1-2
EMC:
- FCC Part 15B
- EN 301 489-1
- EN 301 489-17
- EN55022
- EN55024
- EN61000-3-2/-3
- BSMI CNS13438
Safety:
- EN 60950-1
- IEC 60950-1
- BSMI
- CNS14336-1
