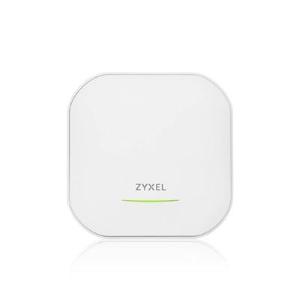

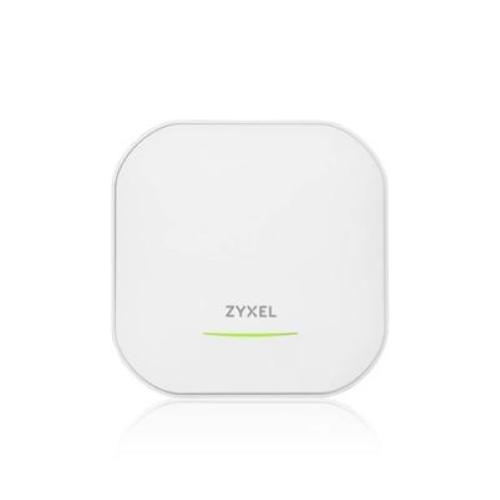

Access Point Wireless ZYXEL NWA220AX-6E-EU0101F NebulaFlex WIfI-6E Dual Radio 4x4 802.11a/b/g/n/ac/ax 5375Mbps-supp Poe(21w)

Product name
Model: NWA220AX-6E
Description: 802.11ax (WiFi 6E) Dual-Radio PoE Access Point

Wireless
Standard: IEEE 802.11 ax/ac/n/g/b/a
MIMO: MU-MIMO
Wireless speed:
- 2.4GHz: 575 Mbps
- 5GHz: 4800 Mbps
- 6GHz: 4800 Mbps
Frequency band:
2.4 GHz:
- USA (FCC): 2.412 to 2.462 GHz
- Europe (ETSI): 2.412 to 2.472 GHz
5 GHz:
- USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
- European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
6 GHz:
- USA (FCC): 5.925 to 6.425 GHz; 6.525 to 7.125 GHz
- European (ETSI): 5.925 to 6.425 GHz
Bandwidth: 20-, 40-,80- and 160-MHz
Conducted typical transmit output power:
- US (2.4GHz/5GHz) or +/6GHz): 24/25/24dBm
- EU (2.4GHz/5GHz) or +/6GHz): 18/22/19dBm

RF Design
Antenna type: 4x4 + 2x2 Dual-optimized Antenna
Antenna gain:
- 2.4 GHz: Peak Gain 3dBi
- 5 GHz: Peak Gain 5dBi
- 6 GHz: Peak Gain 6dBi
Minimum Receive sensitivity: Min. Rx sensitivity up to -101 dBm

WLAN feature
Band Steering: Yes
WDS/Mesh: Yes
Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v
DCS: Yes
Load balancing: Yes
Advanced Cellular Coexistence: Yes

Security
Encryption: WEP, WPA, WPA2-PSK, WPA3
Authentication: WPA, WPA2, WPA3-Enterprise, EAP, IEEE 802.1X, RADIUS authentication
Access management: L2-isolation, MAC filtering, Rogue AP detection

Networking
IPv6: Yes
VLANs: Yes
WMM: Yes
U-APSD: Yes

Management
Operating mode:
- Nebula Cloud managed
- Controller-managed
- Standalone
ZON Utility:
- Discovery of Zyxel switches, APs and gateways
- Centralized and batch configurations: IP configuration, IP renew, Device reboot, Device locating, Web GUI access, Firmware upgrade, Password configuration
Zyxel Wireless Optimizer:
- WiFi AP planning
- WiFi coverage detection
- Wireless health management
Web UI/CLI: Yes
SNMP: Yes

Physical Specifications
Item:
Dimensions (WxDxH)(mm/in.): 180 x 180 x 42 mm / 7.09 x 7.09 x 1.65
Weight (g/lb.): 650g/1.43lb
Packing:
Dimensions (WxDxH)(mm/in.): 197 x 190 x 60 mm/ 7.76 x 7.48 x 2.36
Weight (g/lb.): 780g/1.72lb
Included accessories: Mount plate, Mounting screws
MTBF (hr): 711,333

Physical Interfaces
Ethernet port:
- 1 x 1/2.5Gbps LAN
- 1 x 1Gbps LAN
Power:
- PoE (802.3)at: power draw 21 W
- DC input : 12 VDC 2A
PoE Modes:
- IEEE802.3af: No Wireless
- IEEE802.3at: Unrestricted
- IEEE802.3bt: Unrestricted

Environmental Specifications
Operating:
- Temperature: 0°C to 50°C/32°F to 122°F
- Humidity: 10% to 95% (non-condensing)
Storage:
- Temperature: -40°C to 70°C/-40°F to 158°F
- Humidity: 10% to 95% (non-condensing)

Certifications
Radio: FCC Part 15C, FCC Part 15E, ETSI EN 300 328, EN 301 893, EN 303 687, LP0002
EMC: FCC Part 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN60601-1-2, BSMI CNS13438
Safety: Safety EN 62368, BSMI CNS14336-1
