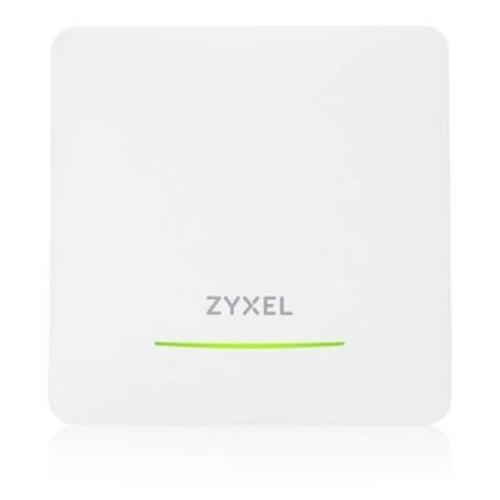

Access Point Wireless Wi-FI7 ZYXEL NWA90BEPRO-EU0102F NebulaFlex Dual Radio 2x2 802.11a/b/g/n/ac/ax/be 6.5Gbps 1P Lan2.5

WIRELESS

Standard: IEEE802.11 be/ax/ac/n/g/b/a

MIMO: MU-MIMO

Wireless speed
- 2.4GHz: 688Mbps
- 5GHz: 4324Mbps
- 6GHz: 5764Mbps

Frequency band
2.4GHz:
- USA (FCC): 2.412 to 2.462 GHz
- Europe (ETSI): 2.412 to 2.472 GHz

5GHz:
- USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
- European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

6GHz:
- USA (FCC): 5.925 to 6.425 GHz; 6.525 to 7.125 GHz
- European (ETSI): 5.925 to 6.425 GHz

Bandwidth: 20-, 40-, 80-, 160-, 240- and 320-MHz

Conducted typical transmit output power
- US (2.4GHz/5GHz/6GHz): 26/25/22dBm
- EU (2.4GHz/5GHz/6GHz): 20/25/22dBm

RF DESIGN

Antenna type: Internal Antenna
Antenna gain
- 2.4GHz:
- 2 dBi, 2x2:2SS

5GHz:
- 3 dBi, 2x2:2SS

6GHz:
- 3 dBi, 2x2:2SS

Minimum receive sensitivity: Min. Rx sensitivity up to -99 dBm

WLAN FEATURES

Band steering: Yes
WDS/Mesh: Yes
Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v
DCS: Yes
Load balancing: No
Advanced cellular coexistence: Yes

SECURITY

Encryption
- WEP
- WPA
- WPA2
- WPA3

Authentication: IEEE 802.1X/ RADIUS authentication

Access management
- L2-isolation
- MAC filtering
- Rogue AP detection

NETWORKING

IPv6: Yes
VLANs: Yes
WMM: Yes
U-APSD: Yes

MANAGEMENT

Operating mode
- Cloud managed
- Standalone

ZON Utility
- Discovery of Zyxel switches, APs and gateways
- Centralized and batch configurations
- IP configuration
- IP renew
- Device reboot
- Device locating
- Web GUI access
- Firmware upgrade
- Password configuration

Web UI/CLI: Yes
SNMP: No

PHYSICAL SPECIFICATIONS

Dimensions (WxDxH)(mm/in.): 150 x 150 x 35 / 5.91 x 5.91 x 1.38
Weight (g/lb.): 412 / 0.91

Packing
Dimensions (WxDxH)(mm/in.): 244 x 168 x 60 / 9.61 x 6.61 x 2.36
Weight (g/lb.): 785 / 1.73

Included accessories
- Power adapter
- Mount plate
- Mounting screws

MTBF (hr): 870,551

PHYSICAL INTERFACES

Ethernet port: 1 x 1/2.5GbE LAN

Power
Power Adapter:
- AC100 - 240V - 50/60Hz 0.3A
- Output: DC +12V 1.5A

PoE (802.3at): power draw 16W

PoE modes
- IEEE 802.3af: Not supported
- IEEE 802.3at: Unrestricted
- IEEE 802.3bt: Unrestricted

ENVIRONMENTAL SPECIFICATIONS

Operating
- Temperature: 0°C to 50°C / 32°F to 122°F
- Humidity: 10% to 95% (non-condensing)

Storage
- Temperature: -40°C to 70°C / -40°F to 158°F
- Humidity: 10% to 90% (non-condensing)
