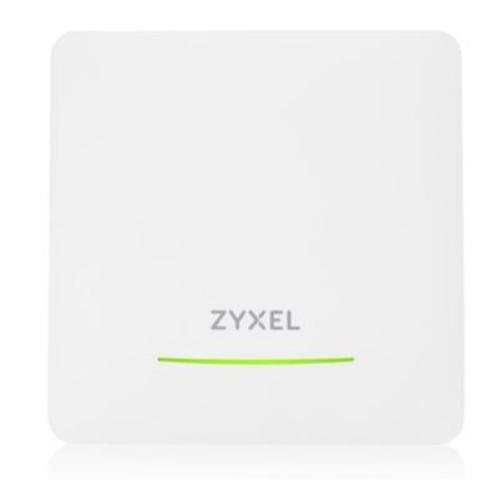

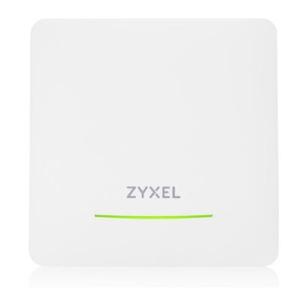

Access Point Wireless Wi-FI7 ZYXEL NWA50BE-EU0102F NebulaFlex Dual Radio 2x2 802.11a/b/g/n/ac/ax/be 5.1Gbps 1P Lan2.5 Fino:31/12

Product name
Description: BE5100 4-Stream WiFi 7 Dual-Radio NebulaFlex Access Point

Wireless
Standard: IEEE 802.11 be/ax/ac/n/g/b/a
MIMO: MU-MIMO
Wireless speed:
- 2.4GHz: 688 Mbps
- 5GHz: 4324 Mbps
Frequency band:
2.4 GHz:
- USA (FCC): 2.412 to 2.462 GHz
- Europe (ETSI): 2.412 to 2.472 GHz
5 GHz:
- USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
- European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth: 20-, 40- ,80-, 160- and 240-MHz
Conducted typical transmit output power:
- US (2.4GHz/5GHz): 26/25dBm
- EU (2.4GHz/5GHz): 20/25dBm

RF Design
Antenna type: Internal Antenna
Antenna gain:
- 2.4GHz: 2 dBi, 2x2:2SS
- 5GHz: 3 dBi, 2x2:2SS
Minimum Receive sensitivity: Min. Rx sensitivity up to -99 dBm

WLAN feature
Band Steering: Yes
WDS/Mesh: Yes
Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v
DCS: Yes
Load balancing: No
Advanced Cellular Coexistence: Yes

Security
Encryption:
- WPA Personal
- WPA2 Personal
- WPA3 Personal
Authentication: No
Access management:
- L2-isolation
- MAC filtering
- Rogue AP detection

Networking
IPv6: Yes
VLANs: Yes
WMM: Yes
U-APSD: Yes

Management
Operating mode:
- Cloud managed
- Standalone
ZON Utility:
- Discovery of Zyxel switches, APs and gateways
- Centralized and batch configurations
- IP configuration
- IP renew
- Device reboot
- Device locating
- Web GUI access
- Firmware upgrade
- Password configuration
Web UI/CLI: Yes
SNMP: NO

Physical Specifications
Item:
- Dimensions (WxDxH)(mm/in.): 150 x 150 x 35 /5.91 x 5.91 x 1.38
- Weight (g/lb.): 412 / 0.91
Packing:
- Dimensions (WxDxH)(mm/in.): 244 x 168 x 60 / 9.61 x 6.61 x 2.36
- Weight (g/lb.): 785 / 1.73
Included accessories: Power adapter, Mount plate, Mounting screws
MTBF (hr): 870,551

Physical Interfaces
Ethernet port: 1 x 1/2.5GbE LAN
Power:
- Power Adapter: AC100 - 240V - 50/60Hz 0.3A; Output: DC +12V 1.5A
- PoE (802.3at): power draw 16W
PoE modes:
- IEEE 802.3af Not supported
- IEEE 802.3at Unrestricted
- IEEE 802.3bt Unrestricted

Environmental Specifications
Operating:
- Temperature: 0°C to 50°C/32°F to 122°F
- Humidity: 10% to 95% (non-condensing)
Storage:
- Temperature: -40°C to 70°C/-40°F to 158°F
- Humidity: 10% to 90% (non-condensing)

Certifications
Radio: FCC Part 15C, FCC Part 15E,FCC Part 2.1091, ETSI EN 300 328, EN 301 893, Draft EN 303 687, EN 50385, EN 50665, EN IEC 62311, LP0002
EMC: FCC Part 15B, EN 301 489-1, EN 301 489-17, EN55032, EN55035, EN61000-3-2/-3, EN60601-1-2, BSMI CNS15936
Safety: EN 62368-1, IEC 62368-1, BSMI CNS15598-1
