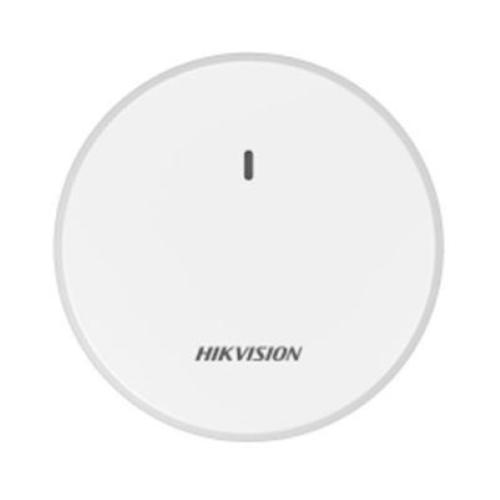

ACCESS POINT WIRELESS HIKVISION DS-3WAP522-SI DA SOFFITTO 1200Mbps Dual Band - Wi-Fi5 Fino:30/09

General
Weight: 0.4 kg
Installation Mode: Desk-Mounted, Wall-Mounted, Ceiling Mounting
Working Temperature: 0 °C to 40 °C
Working Humidity: 5% to 95% (no condensation)
Storage Temperature: -40 °C to 70 °C
Storage Humidity: 5% to 95% (no condensation)
Product Dimensions (W × H × D): 220 × 220 × 35 mm
Packing List:
- 1200 M Access Point ×1
- Screw Pack × 1
- Quick Start Guide ×1
- Regulatory Compliance and Safety Information × 1
Power Consumption: Max. 11.35 W

WLAN Parameters
Maximum Number of Clients: 256
Recommended Number of Clients: 80
Maximum Number of SSIDs: 8
Working Frequency Band:
- radio 1: 5G(11a/n/ac/ax)
- radio 2: 2.4G(11b/g/n/ax)
Wi-Fi Standards: Wi-Fi 5
Wi-Fi Speed:
- 2.4 G: 300 Mbps
- 5 G: 867 Mbps
Spatial Streams:
- 2.4 GHz: 2×2 , MU-MIMO
- 5 GHz: 2×2 , MU-MIMO
Channel Width:
- 2.4 GHz: Auto/20/40 MHz
- 5 GHz: Auto/20/40/80/MHz
Number of Antennas:
- 2.4GHz: 2
- 5GHz: 2
Antenna Type: Built-in omnidirectional antennas
Antenna Gain:
- 2.4 GHz: 3 dBi
- 5 GHz: 4 dBi
Transmit Power: 20 dBm
Modulation Technology:
- OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
- DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps
- MIMO-OFDM(11n): MCS 0-15
- MIMO-OFDM(11ac): MCS 0-9
- MIMO-OFDM(11ax): MCS 0-11

Software Specifications
WLAN Security: WAP-PSK, WAP2-PSK, WPA-WAP2-PSK, Blocklist & Allowlist, Support Multiple encryption key triggered dynamic unicast/multicast key update, Support Open system/shared key authentication, Support wireless endpoint access, Support SSID and VLAN binding, Support 802.11i
Management & Maintenance: Centralized AC management
Version Upgrade: upgrade on Web

Hardware Specifications
Interface: 1× Gigabit RJ45 uplink port
Power Supply: IEEE 802.3af/at POE,12 VDC 1.5 A
LED Indicator: Yellow/green/blue for different working states, flashing mode
Reset Button: Hardware Resetting Button

Approval
EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017),UL (UL 60950-1)
Chemistry: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
Radio: EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
