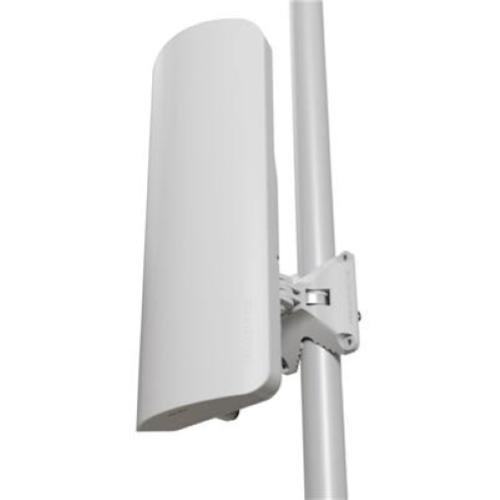

ACCESS POINT MIKROTIK L22UGS-5HAXD2HAXD-15S AP SETTORIALE MANTBOX AX 15S 802.11AX

Specifications
Product code: L22UGS-5HaxD2HaxD-15S
Architecture: ARM
CPU: IPQ-5010
CPU core count: 2
CPU nominal frequency: 800 MHz
RouterOS license: 4
Operating System: RouterOS v7
Size of RAM: 256 MB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C

Powering
Number of DC inputs: 2 (PoE-IN, DC jack)
DC jack input Voltage: 12-28 V
Max power consumption: 21 W
Max power consumption without attachments: 11 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 18-28 V

Wireless specifications
Wireless 2.4 GHz Max data rate: 574 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz: 12
Wireless 2.4 GHz chip model: IPQ-5010
Wireless 2.4 GHz generation: Wi-Fi 6
Wireless 5 GHz Max data rate: 2400 Mbit/s
Wireless 5 GHz number of chains: 2
Wireless 5 GHz standards: 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz: 15
Wireless 5 GHz chip model: QCN-6102
Wireless 5 GHz generation: Wi-Fi 6

Ethernet
10/100/1000 Ethernet ports: 1

Fiber
SFP ports: 1 (2.5G supported)

Peripherals
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1.5

Other
PCB temperature monitor: Yes
Voltage Monitor: Yes
Beeper: Yes

Certification & Approvals
Certification: CE, FCC, IC, EAC, ROHS
IP: 55
