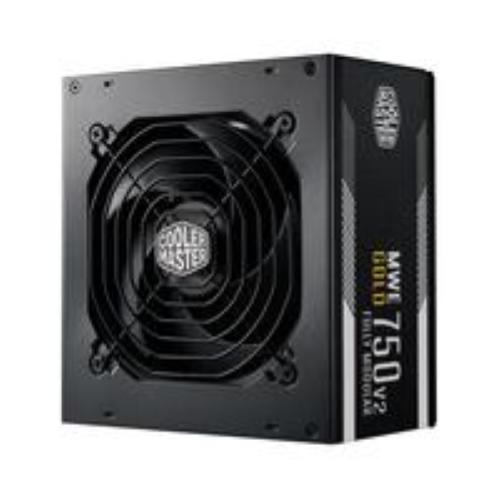

ALIMENTATORE ATX 750W CoolerMaster MWE Gold MPE-7501-AFAAG-EU PFC ATTIVO GOLD Full Modulare 240Vac Fan120mm Cavo EU

Descrizione

MODEL
MPE-7501-AFAAG

ATX VERSION
ATX 12V

PFC
Active PFC

INPUT VOLTAGE
90-264V

INPUT CURRENT
10-5A

INPUT FREQUENCY
47-63Hz

DIMENSIONS (L X W X H)
160 x 150 x 86 mm

FAN SIZE
120mm

FAN BEARING
HDB

FAN SPEED
1500 RPM

NOISE LEVEL @ 20%
0 dBA

NOISE LEVEL @ 50%
17.8 dBA

NOISE LEVEL @ 100%
24.9 dBA

EFFICIENCY
90% @ Typical Load

80 PLUS RATING
80 PLUS Gold

ERP 2014 LOT 3
Yes

OPERATING TEMPERATURE
0-50°C

POWER GOOD SIGNAL
100 - 150 ms

HOLD UP TIME
>16ms at 100% Load

MTBF
>100,000 Hours

PROTECTIONS
OVP, OPP, OTP, SCP, OCP, UVP

REGULATORY
TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI

ATX 24-PIN CONNECTORS
1

EPS 4+4 PIN CONNECTORS
1

EPS 8 PIN CONNECTOR
1

SATA CONNECTORS
12

PERIPHERAL 4-PIN CONNECTORS
4

PCI-E 6+2 PIN CONNECTORS
4

SERIES
MWE Gold Series

80 PLUS
Gold

MODULAR
Full Modular

WATTAGE
500 to 750W
